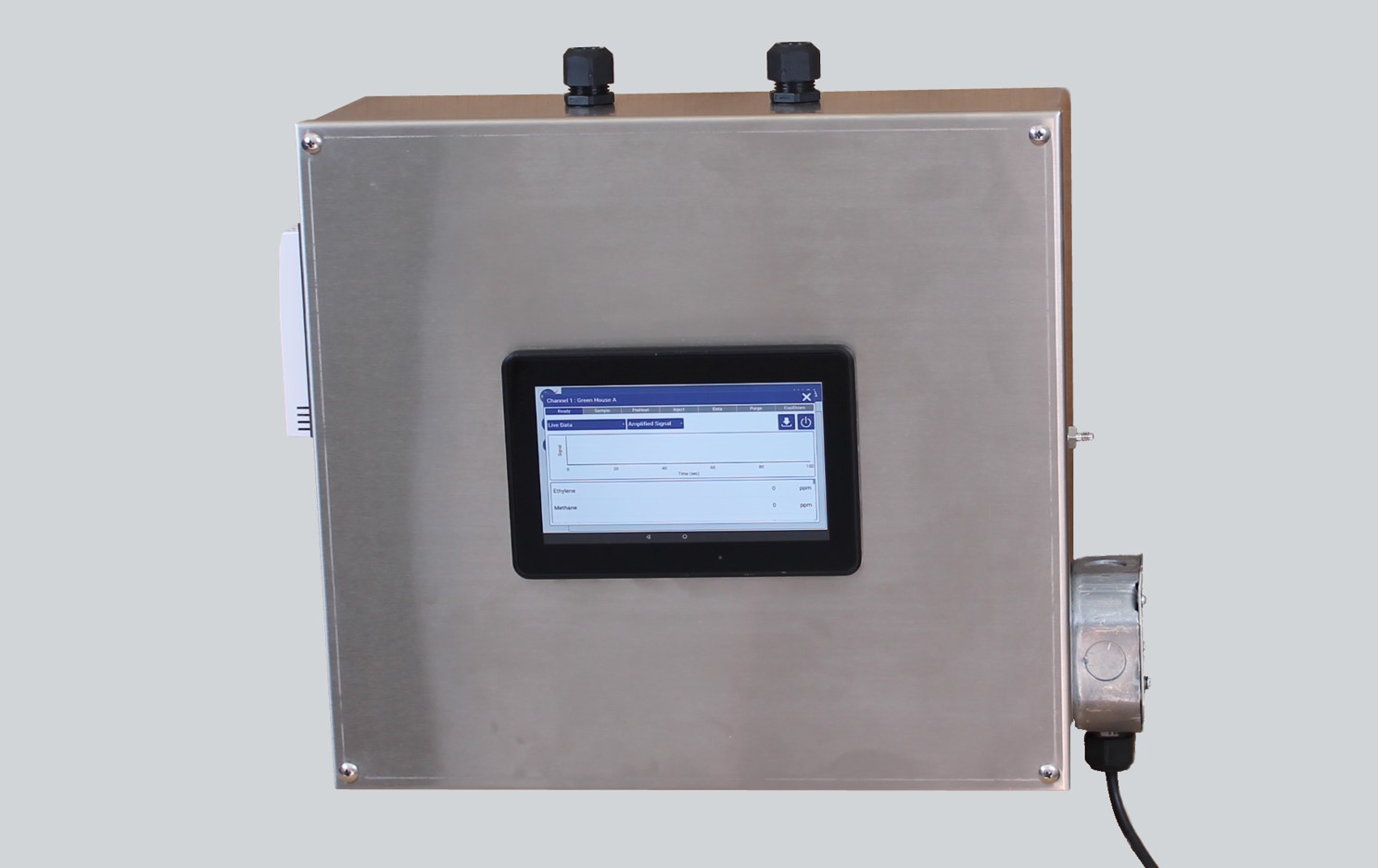

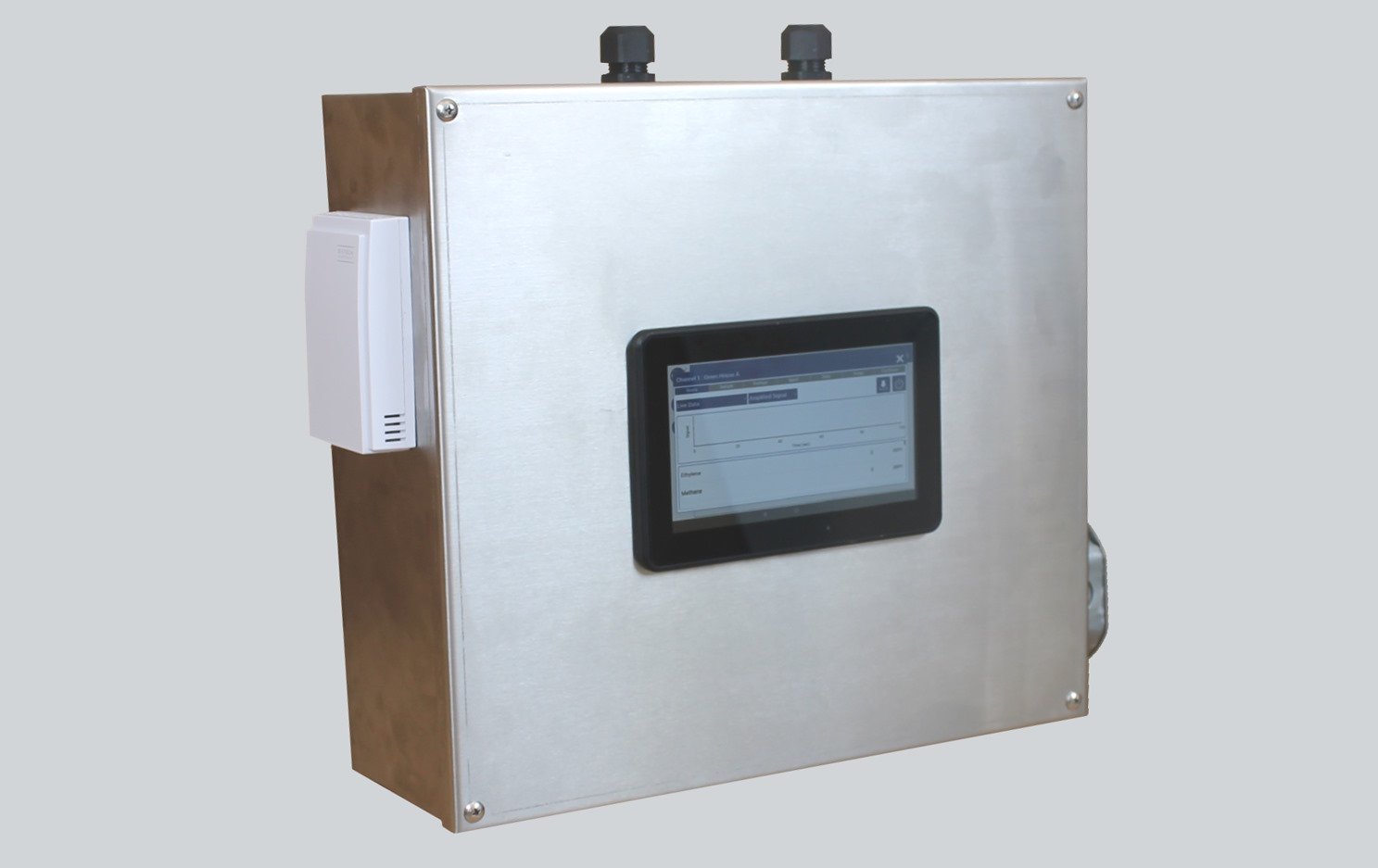

STRATUS GC-1 Base
The STRATUS GC-1 Base operates on the fundamental principle of measuring the response time to molecules of various gases as they pass from the capillary column to the electrochemical sensor. Designed as a standalone solution, the STRATUS GC-1 Base allows for the flexibility of adding a modem separately. This unique feature enables the modem to be located in a different space from the main device, providing the advantage of establishing a stable network connection.
Customizable continuous monitoring is at the core of the STRATUS GC-1 Base's capabilities. This monitoring mode is programmed into the device's controller, offering adaptability to your specific requirements. Particularly valuable in industrial and agricultural settings, continuous monitoring ensures worker safety and inhabitable area well-being by precisely tracking volatile organic compounds (VOCs). This approach allows for timely responses to fluctuations in air quality, bolstering industrial and agricultural processes' safety and efficiency.
The system can be configured to connect up to 16 channels through a router, a convenient add-on option from ATHERO. This heightened connectivity empowers in-depth data exploration and analysis, facilitating a comprehensive understanding of the air quality in the surrounding environment.
In contrast to its predecessor, the STRATUS GC-1 Base does not feature an integrated modem. Instead, it empowers users to equip the device with a separate modem, enabling remote accessibility. This novel approach ensures constant online availability, permitting operators to remotely access the device and retrieve data in real time. This remote connection enhances communication between the device and operators, enabling timely responses to sensor-detected changes. With this advanced capability, the STRATUS GC-1 Base stands as an efficient and user-centric solution for gas detection and air quality monitoring.
Specifications
Detected gases |
• Methane (CH4) • Ethane (C2H6) • Propane (C3H8) • Isobutane (C4H10) • n-Butane (C4H10) • Isopentane (C5H12) • n-Pentane (C5H12) • Hexane (C6H14) • Heptane (C7H16) • Octane (C8H18) • Nonane (C9H20) • Decane (C10H22) • Hydrogen (H2) • Oxygen (O2) • Nitrogen (N2) • Carbon Dioxide (CO2) • Carbon Monoxide (CO) • Acetylene (C2H2) • Ethylene (C2H4) • Propylene (C3H6) * |
• Methane (CH4) • Ethane (C2H6) • Propane (C3H8) • Isobutane (C4H10) • n-Butane (C4H10) • Isopentane (C5H12) • n-Pentane (C5H12) • Hexane (C6H14) • Heptane (C7H16) • Octane (C8H18) • Nonane (C9H20) • Decane (C10H22) • Hydrogen (H2) • Oxygen (O2) • Nitrogen (N2) • Carbon Dioxide (CO2) • Carbon Monoxide (CO) • Acetylene (C2H2) • Ethylene (C2H4) • Propylene (C3H6) * |
• Methane (CH4) • Ethane (C2H6) • Propane (C3H8) • Isobutane (C4H10) • n-Butane (C4H10) • Isopentane (C5H12) • n-Pentane (C5H12) • Hexane (C6H14) • Heptane (C7H16) • Octane (C8H18) • Nonane (C9H20) • Decane (C10H22) • Acetylene (C2H2) • Ethylene (C2H4) • Propylene (C3H6) * |
• Methane (CH4) • Ethane (C2H6) • Propane (C3H8) • Isobutane (C4H10) • n-Butane (C4H10) • Isopentane (C5H12) • n-Pentane (C5H12) • Hexane (C6H14) • Heptane (C7H16) • Octane (C8H18) • Hydrogen (H2) • Oxygen (O2) • Nitrogen (N2) • Carbon Dioxide (CO2) • Carbon Monoxide (CO) • Acetylene (C2H2) • Ethylene (C2H4) • Propylene (C3H6) * |
---|---|---|---|---|
Measurement concentration | 50 to 1000 ppb | 50 to 1000 ppb | 50 to 1000 ppb | 50 to 1000 ppb |
Measurement step | 0,1 ppb | 0,1 ppb | 0,1 ppb | 0,1 ppb |
Sampling injection | Automatic sampling from the tubular channel | Automatic and manual sampling from the tubular channel | Automatic sampling from the tubular channel | Manual sampling from the tubular channel |
Sampling gas amount | From 50 mL to 500 mL per minute | From 50 mL to 500 mL per minute | From 50 mL to 500 mL per minute | From 50 mL to 500 mL per minute |
Sampling frequency from one channel | Base value of 15 minutes ** | Base value of 15 minutes ** | Base value of 10 minutes ** | Base value of 15 minutes ** |
Channel capacity | From 1 to 16 units *** | From 1 to 16 units *** | From 1 to 16 units *** | Not provided |
Length of the route | Each channel up to 16.4 feet | Each channel up to 16.4 feet | Each channel up to 16.4 feet | Single sampling channel - 16 feet |
Column | CarboWax 30 m | CarboWax 30 m | CarboXen 30 m | CarboWax 30 m |
Sensor | PID | PID | Metal Oxide detector (Semiconductor gas sensor) | PID |
Preconcentrator | Utilizes adsorbent material | Utilizes adsorbent material | Utilizes adsorbent material | Utilizes adsorbent material |
Additional Detectors | Real-time detector connection is available **** | Real-time detector connection is available **** | Real-time detector connection is available **** | Not provided |
Additional Equipment | The system allows for the connection of a channel router and real-time detector **** | The system allows you to connect a modem, a channel router and a real-time detector **** | The system allows for the connection of a channel router and real-time detector **** | Not provided |
Display | LED 10,1'', Tuch Screen | LED 10,1'', Tuch Screen | LED 10,1'', Tuch Screen | LED 9'', Tuch Screen |
Modem | Included in the basic kit | It is possible to connect as an additional device | Included in the basic kit | Connection is not provided |
Data Export Method | • USB interface • From the user's personal account database |
• USB interface • From the user's personal account database (when connecting the modem additionally) |
• USB interface • From the user's personal account database |
• USB interface |
Dimensions | 20'' x 16'' x 8'' | 18'' x 15'' x 8'' | 20'' x 16'' x 8'' | 18'' x 15'' x 7'' |
Device Weight | 16.53 pounds (7.5 kg) | 15.43 pounds (7 kg) | 16.53 pounds (7.5 kg) | 15.5 pounds (7.03 kg) |
Power Supply | 120 V, 50/60 Hz | 120 V, 50/60 Hz | 120 V, 50/60 Hz | 120 V, 50/60 Hz |
Power Consumption | Approx. 100 VA | Approx. 100 VA | Approx. 100 VA | Approx. 100 VA |
Operational Temperature Range | of 17 °F to 115 °F | of 17 °F to 115 °F | of 17 °F to 115 °F | of 17 °F to 115 °F |
details | details | details |
* Please note that this list may vary depending on the specific configuration and settings of the gas analysis system
** It can be reduced during volatile gas detection
*** Multichannel capability requires additional router connection
**** It is not included in the main package. It can be added to the order as a separate item
Device Features
Advanced Analysis Capabilities
The STRATUS GC-1 Base showcases advanced capabilities in analytical monitoring. This model is adept at overseeing an extensive range of analytes, spanning from lightweight to heavy compounds, all within a remarkably compact GC column and a brief analysis period of just 15 minutes. Notably versatile, this model conducts analyses across a wide concentration spectrum, ranging from sub-ppb levels to concentrations in the hundreds of ppm.
Automated Precision
Employing principles akin to those utilized by laboratory-grade gas chromatographs, the STRATUS GC-1 Base introduces automated functionality with precision. This continuous cycle design facilitates round-the-clock monitoring, with every aspect of the process meticulously automated for seamless operation.
Robust VOC Detection
At the core of the STRATUS GC-1 Base is its robust volatile organic compounds (VOCs) detection capability. This encompasses an extensive array of VOC types, including aromatic hydrocarbons, aliphatics, aldehydes, ketones, ethers, acids, and alcohols, each encompassing diverse functional groups such as halogens, oxygen, sulfur, nitrogen, or phosphorus. It's important to note that the STRATUS GC-1 Base excels in detecting these compounds, excluding carbon oxides and carbonates.
