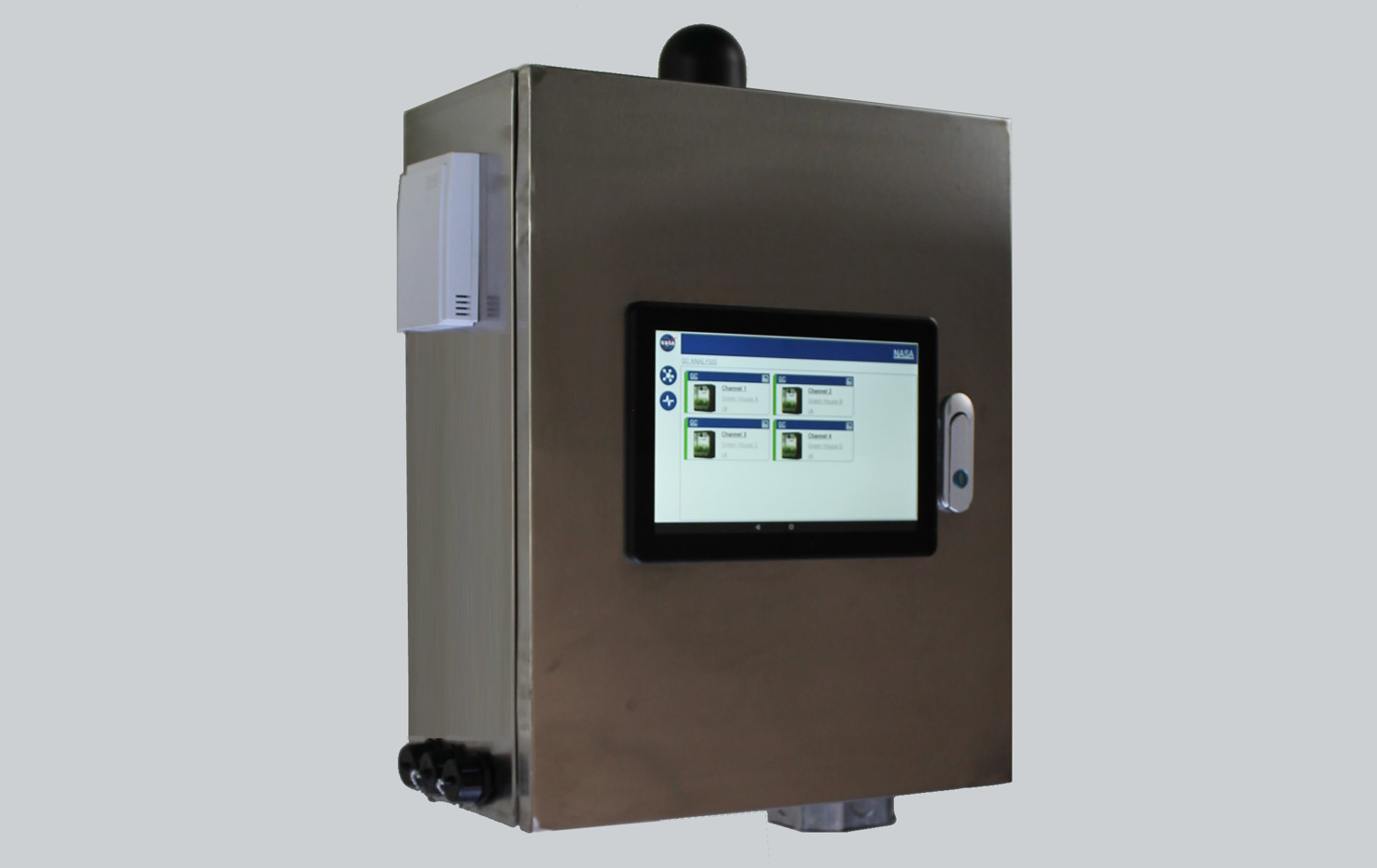

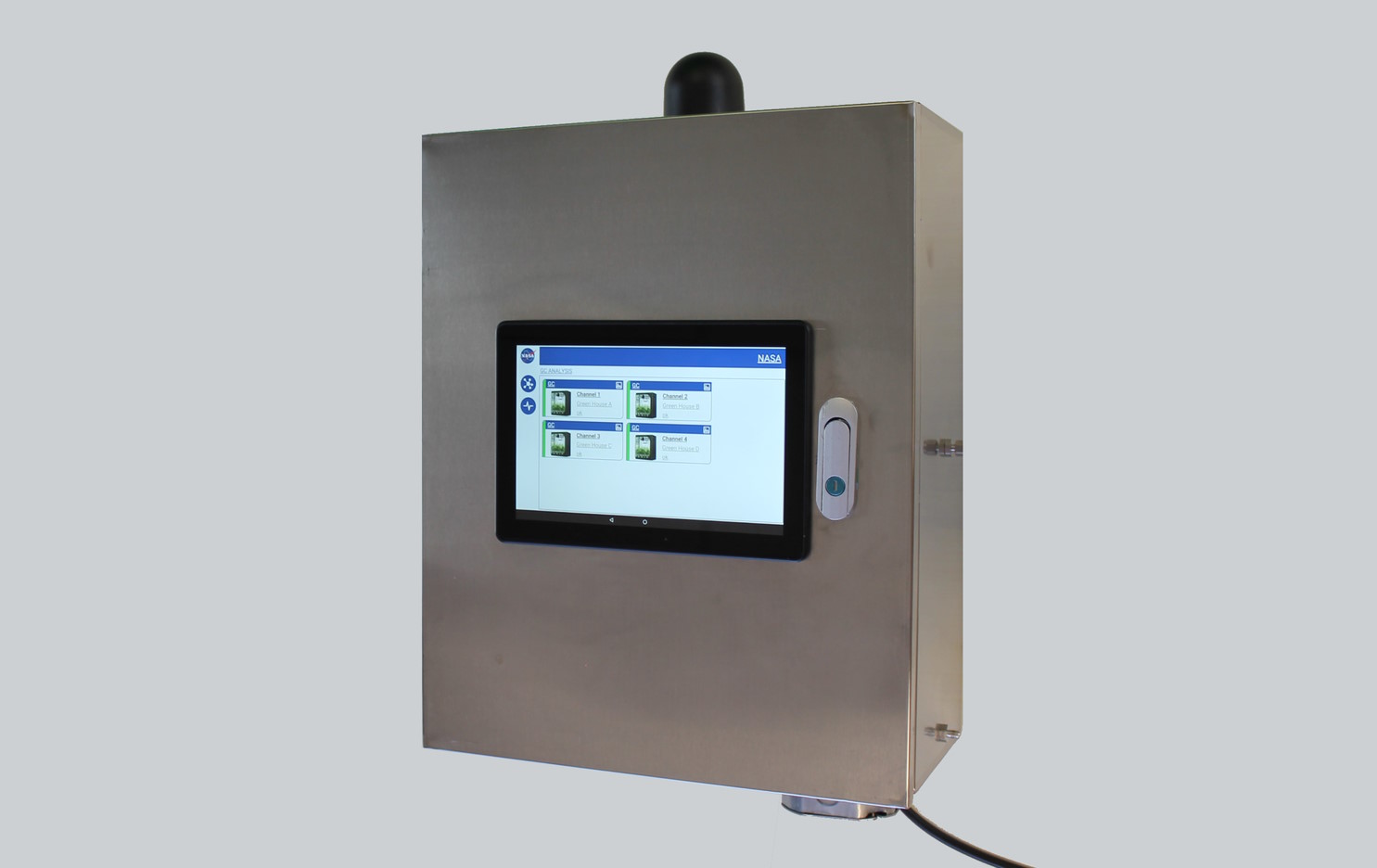

STRATUS GC-1 EX
The operating principle of the STRATUS GC-1 EX system is based on measuring the response time to molecules of various gases passing from the capillary column to the electrochemical sensor. The continuous monitoring mode is programmed as a schedule in the device's controller and can be customized to your needs at any time. This continuous monitoring is particularly crucial for VOC control in industrial and agricultural facilities, where air quality monitoring plays a vital role in ensuring the safety of workers and inhabited areas. The continuous mode enables more accurate tracking of hazardous substance levels in the surrounding environment and timely response to any changes related to industrial processes and agriculture.
The monitoring system has the capability to connect up to 16 channels through a router, which can be conveniently added as an additional option from ATHERO. This expanded connectivity allows for more comprehensive data exploration and analysis, providing a more detailed understanding of the air quality conditions in the surrounding space.
The STRATUS GC-1 EX device comes equipped with a modem for remote connectivity, ensuring it is always accessible online for the operator. This feature allows the operator to remotely access the device, retrieve data, and promptly respond to any changes detected by the sensor. The modem enables seamless communication between the monitoring system and the operator, ensuring continuous and real-time monitoring of gas levels and providing the ability to take immediate action when necessary. This remote access capability enhances the efficiency and effectiveness of the monitoring process, making the STRATUS GC-1 EX a reliable and user-friendly solution for gas detection and air quality monitoring.
Specifications
Detected gases |
• Methane (CH4) • Ethane (C2H6) • Propane (C3H8) • Isobutane (C4H10) • n-Butane (C4H10) • Isopentane (C5H12) • n-Pentane (C5H12) • Hexane (C6H14) • Heptane (C7H16) • Octane (C8H18) • Nonane (C9H20) • Decane (C10H22) • Hydrogen (H2) • Oxygen (O2) • Nitrogen (N2) • Carbon Dioxide (CO2) • Carbon Monoxide (CO) • Acetylene (C2H2) • Ethylene (C2H4) • Propylene (C3H6) * |
• Methane (CH4) • Ethane (C2H6) • Propane (C3H8) • Isobutane (C4H10) • n-Butane (C4H10) • Isopentane (C5H12) • n-Pentane (C5H12) • Hexane (C6H14) • Heptane (C7H16) • Octane (C8H18) • Nonane (C9H20) • Decane (C10H22) • Hydrogen (H2) • Oxygen (O2) • Nitrogen (N2) • Carbon Dioxide (CO2) • Carbon Monoxide (CO) • Acetylene (C2H2) • Ethylene (C2H4) • Propylene (C3H6) * |
• Methane (CH4) • Ethane (C2H6) • Propane (C3H8) • Isobutane (C4H10) • n-Butane (C4H10) • Isopentane (C5H12) • n-Pentane (C5H12) • Hexane (C6H14) • Heptane (C7H16) • Octane (C8H18) • Nonane (C9H20) • Decane (C10H22) • Acetylene (C2H2) • Ethylene (C2H4) • Propylene (C3H6) * |
• Methane (CH4) • Ethane (C2H6) • Propane (C3H8) • Isobutane (C4H10) • n-Butane (C4H10) • Isopentane (C5H12) • n-Pentane (C5H12) • Hexane (C6H14) • Heptane (C7H16) • Octane (C8H18) • Hydrogen (H2) • Oxygen (O2) • Nitrogen (N2) • Carbon Dioxide (CO2) • Carbon Monoxide (CO) • Acetylene (C2H2) • Ethylene (C2H4) • Propylene (C3H6) * |
---|---|---|---|---|
Measurement concentration | 50 to 1000 ppb | 50 to 1000 ppb | 50 to 1000 ppb | 50 to 1000 ppb |
Measurement step | 0,1 ppb | 0,1 ppb | 0,1 ppb | 0,1 ppb |
Sampling injection | Automatic sampling from the tubular channel | Automatic and manual sampling from the tubular channel | Automatic sampling from the tubular channel | Manual sampling from the tubular channel |
Sampling gas amount | From 50 mL to 500 mL per minute | From 50 mL to 500 mL per minute | From 50 mL to 500 mL per minute | From 50 mL to 500 mL per minute |
Sampling frequency from one channel | Base value of 15 minutes ** | Base value of 15 minutes ** | Base value of 10 minutes ** | Base value of 15 minutes ** |
Channel capacity | From 1 to 16 units *** | From 1 to 16 units *** | From 1 to 16 units *** | Not provided |
Length of the route | Each channel up to 16.4 feet | Each channel up to 16.4 feet | Each channel up to 16.4 feet | Single sampling channel - 16 feet |
Column | CarboWax 30 m | CarboWax 30 m | CarboXen 30 m | CarboWax 30 m |
Sensor | PID | PID | Metal Oxide detector (Semiconductor gas sensor) | PID |
Preconcentrator | Utilizes adsorbent material | Utilizes adsorbent material | Utilizes adsorbent material | Utilizes adsorbent material |
Additional Detectors | Real-time detector connection is available **** | Real-time detector connection is available **** | Real-time detector connection is available **** | Not provided |
Additional Equipment | The system allows for the connection of a channel router and real-time detector **** | The system allows you to connect a modem, a channel router and a real-time detector **** | The system allows for the connection of a channel router and real-time detector **** | Not provided |
Display | LED 10,1'', Tuch Screen | LED 10,1'', Tuch Screen | LED 10,1'', Tuch Screen | LED 9'', Tuch Screen |
Modem | Included in the basic kit | It is possible to connect as an additional device | Included in the basic kit | Connection is not provided |
Data Export Method | • USB interface • From the user's personal account database |
• USB interface • From the user's personal account database (when connecting the modem additionally) |
• USB interface • From the user's personal account database |
• USB interface |
Dimensions | 20'' x 16'' x 8'' | 18'' x 15'' x 8'' | 20'' x 16'' x 8'' | 18'' x 15'' x 7'' |
Device Weight | 16.53 pounds (7.5 kg) | 15.43 pounds (7 kg) | 16.53 pounds (7.5 kg) | 15.5 pounds (7.03 kg) |
Power Supply | 120 V, 50/60 Hz | 120 V, 50/60 Hz | 120 V, 50/60 Hz | 120 V, 50/60 Hz |
Power Consumption | Approx. 100 VA | Approx. 100 VA | Approx. 100 VA | Approx. 100 VA |
Operational Temperature Range | of 17 °F to 115 °F | of 17 °F to 115 °F | of 17 °F to 115 °F | of 17 °F to 115 °F |
details | details | details |
* Please note that this list may vary depending on the specific configuration and settings of the gas analysis system
** It can be reduced during volatile gas detection
*** Multichannel capability requires additional router connection
**** It is not included in the main package. It can be added to the order as a separate item
Device Features

Analytical Monitoring
STRATUS GC-1 EX boasts the ability to monitor broad ranges of analytes from light to heavy on a relatively short and compact GC column in a short period of time (15 min). This model can perform the analysis in a broad range of concentrations from sub-ppb to hundreds of ppm.

Automated Functionality
STRATUS GC-1 EX applies the same principles that lab grade gas chromatographs employ to analyze samples, but in a continuous cycle. Allowing around the clock monitoring to be completely automated.

Robust VOC Detector
STRATUS GC-1 EX is able to detect a wide variety of VOCs. Including aromatic hydrocarbons, aliphatics, aldehydes, ketones, ethers, acids, and alcohols, with diverse functional groups (halogens, oxygen, sulfur, nitrogen, or phosphorus, excluding carbonoxides and carbonates).
