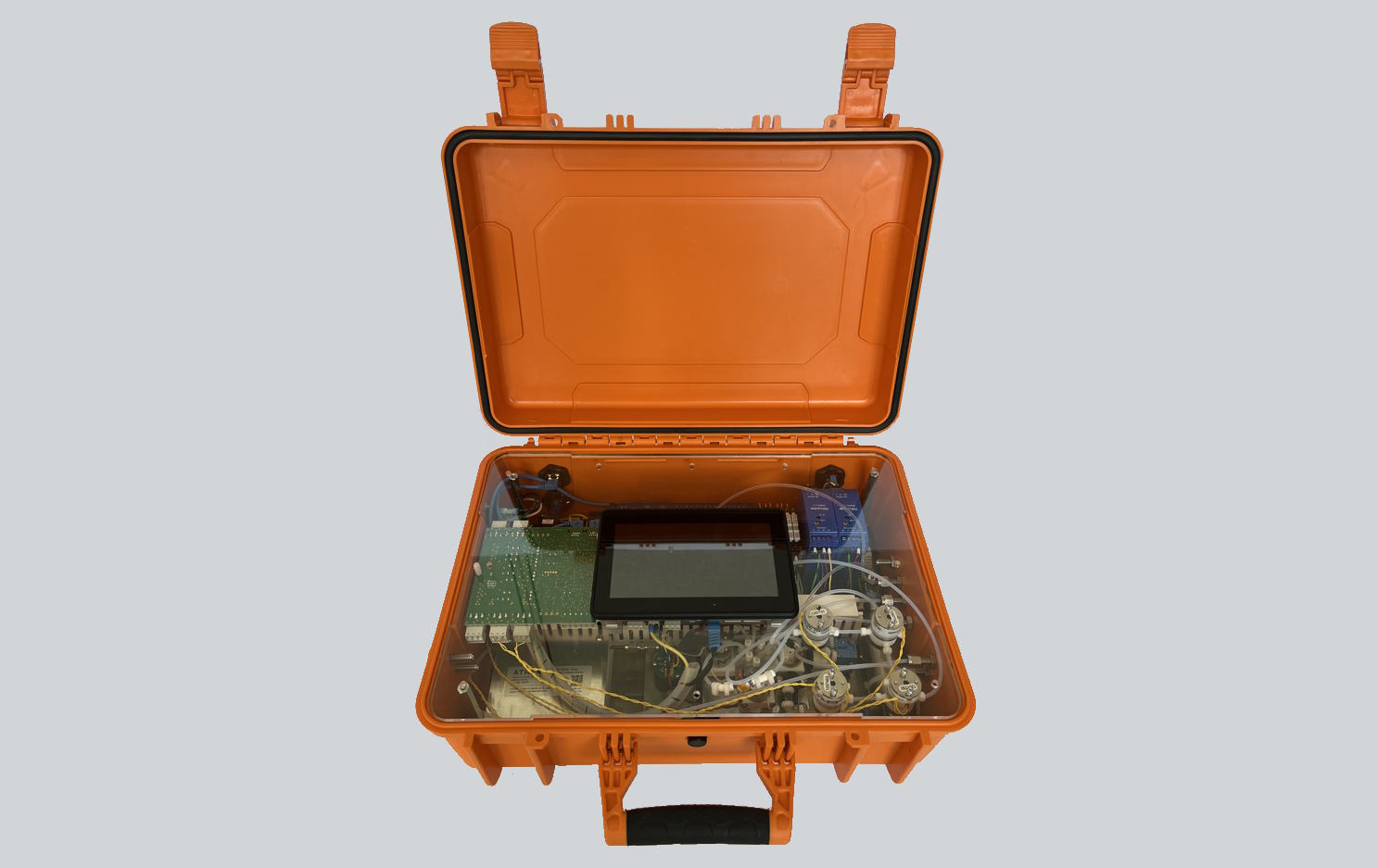

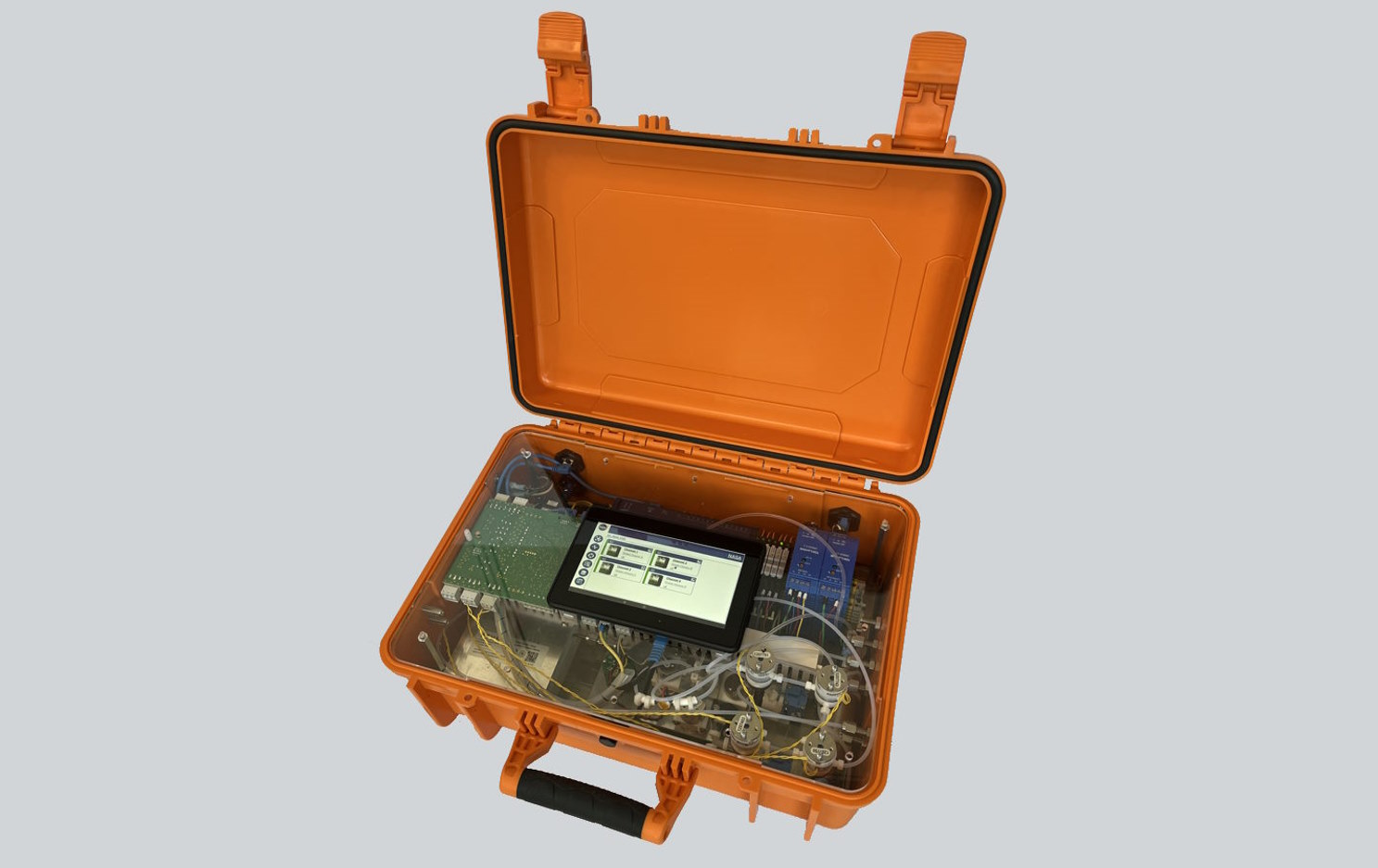

STRATUS GC-1 Port
The operational foundation of the STRATUS GC-1 Port revolves around gauging the reaction time of various gas molecules as they traverse from the capillary column to the electrochemical sensor. Its continuous monitoring mode is preprogrammed into the device's controller, ensuring flexibility to tailor it according to your requirements at any juncture. This ceaseless monitoring proves particularly indispensable for VOC management within industrial and agricultural settings, where the vigilance over air quality stands pivotal for safeguarding both personnel and inhabited spaces. The persistent mode further enhances precision in tracking perilous substance levels within the surrounding milieu, promptly responding to any shifts connected to industrial processes and agriculture.
In contrast to its EX counterpart, the STRATUS GC-1 Port lacks the ability to connect through a router, yet it boasts a remarkable feature in its portable design. This design permits effortless transportation and deployment in various areas. The STRATUS GC-1 Port's mobility and agility render it apt for adapting to dynamic monitoring needs, all without the constraint of a router connection. This adaptability positions the STRATUS GC-1 Port as a versatile solution for accommodating ever-changing monitoring requirements.
While the STRATUS GC-1 Port doesn't include a modem in its package, it empowers local data management. Operators can efficiently access and manage data within proximity, allowing operational agility and responsiveness. The absence of an integrated modem doesn't impede the device's capability to capture and process crucial data for on-the-ground decision-making.
The STRATUS GC-1 Port remains a dependable and user-friendly tool for gas detection and air quality monitoring, with its distinctive portable advantage driving a new dimension in monitoring flexibility.
Specifications
| Detected gases |
• Methane (CH4) • Ethane (C2H6) • Propane (C3H8) • Isobutane (C4H10) • n-Butane (C4H10) • Isopentane (C5H12) • n-Pentane (C5H12) • Hexane (C6H14) • Heptane (C7H16) • Octane (C8H18) • Nonane (C9H20) • Decane (C10H22) • Hydrogen (H2) • Oxygen (O2) • Nitrogen (N2) • Carbon Dioxide (CO2) • Carbon Monoxide (CO) • Acetylene (C2H2) • Ethylene (C2H4) • Propylene (C3H6) * |
• Methane (CH4) • Ethane (C2H6) • Propane (C3H8) • Isobutane (C4H10) • n-Butane (C4H10) • Isopentane (C5H12) • n-Pentane (C5H12) • Hexane (C6H14) • Heptane (C7H16) • Octane (C8H18) • Nonane (C9H20) • Decane (C10H22) • Hydrogen (H2) • Oxygen (O2) • Nitrogen (N2) • Carbon Dioxide (CO2) • Carbon Monoxide (CO) • Acetylene (C2H2) • Ethylene (C2H4) • Propylene (C3H6) * |
• Methane (CH4) • Ethane (C2H6) • Propane (C3H8) • Isobutane (C4H10) • n-Butane (C4H10) • Isopentane (C5H12) • n-Pentane (C5H12) • Hexane (C6H14) • Heptane (C7H16) • Octane (C8H18) • Nonane (C9H20) • Decane (C10H22) • Acetylene (C2H2) • Ethylene (C2H4) • Propylene (C3H6) * |
• Methane (CH4) • Ethane (C2H6) • Propane (C3H8) • Isobutane (C4H10) • n-Butane (C4H10) • Isopentane (C5H12) • n-Pentane (C5H12) • Hexane (C6H14) • Heptane (C7H16) • Octane (C8H18) • Hydrogen (H2) • Oxygen (O2) • Nitrogen (N2) • Carbon Dioxide (CO2) • Carbon Monoxide (CO) • Acetylene (C2H2) • Ethylene (C2H4) • Propylene (C3H6) * |
|---|---|---|---|---|
| Measurement concentration | 50 to 1000 ppb | 50 to 1000 ppb | 50 to 1000 ppb | 50 to 1000 ppb |
| Measurement step | 0,1 ppb | 0,1 ppb | 0,1 ppb | 0,1 ppb |
| Sampling injection | Automatic sampling from the tubular channel | Automatic and manual sampling from the tubular channel | Automatic sampling from the tubular channel | Manual sampling from the tubular channel |
| Sampling gas amount | From 50 mL to 500 mL per minute | From 50 mL to 500 mL per minute | From 50 mL to 500 mL per minute | From 50 mL to 500 mL per minute |
| Sampling frequency from one channel | Base value of 15 minutes ** | Base value of 15 minutes ** | Base value of 10 minutes ** | Base value of 15 minutes ** |
| Channel capacity | From 1 to 16 units *** | From 1 to 16 units *** | From 1 to 16 units *** | Not provided |
| Length of the route | Each channel up to 16.4 feet | Each channel up to 16.4 feet | Each channel up to 16.4 feet | Single sampling channel - 16 feet |
| Column | CarboWax 30 m | CarboWax 30 m | CarboXen 30 m | CarboWax 30 m |
| Sensor | PID | PID | Metal Oxide detector (Semiconductor gas sensor) | PID |
| Preconcentrator | Utilizes adsorbent material | Utilizes adsorbent material | Utilizes adsorbent material | Utilizes adsorbent material |
| Additional Detectors | Real-time detector connection is available **** | Real-time detector connection is available **** | Real-time detector connection is available **** | Not provided |
| Additional Equipment | The system allows for the connection of a channel router and real-time detector **** | The system allows you to connect a modem, a channel router and a real-time detector **** | The system allows for the connection of a channel router and real-time detector **** | Not provided |
| Display | LED 10,1'', Tuch Screen | LED 10,1'', Tuch Screen | LED 10,1'', Tuch Screen | LED 9'', Tuch Screen |
| Modem | Included in the basic kit | It is possible to connect as an additional device | Included in the basic kit | Connection is not provided |
| Data Export Method | • USB interface • From the user's personal account database |
• USB interface • From the user's personal account database (when connecting the modem additionally) |
• USB interface • From the user's personal account database |
USB interface |
| Dimensions | 20'' x 16'' x 8'' | 18'' x 15'' x 8'' | 20'' x 16'' x 8'' | 18'' x 15'' x 7'' |
| Device Weight | 16.53 pounds (7.5 kg) | 15.43 pounds (7 kg) | 16.53 pounds (7.5 kg) | 15.5 pounds (7.03 kg) |
| Power Supply | 120 V, 50/60 Hz | 120 V, 50/60 Hz | 120 V, 50/60 Hz | 120 V, 50/60 Hz |
| Power Consumption | Approx. 100 VA | Approx. 100 VA | Approx. 100 VA | Approx. 100 VA |
| Operational Temperature Range | of 17 °F to 115 °F | of 17 °F to 115 °F | of 17 °F to 115 °F | of 17 °F to 115 °F |
| details | details | details | ||
* Please note that this list may vary depending on the specific configuration and settings of the gas analysis system
** It can be reduced during volatile gas detection
*** Multichannel capability requires additional router connection
**** It is not included in the main package. It can be added to the order as a separate item
Device Features
Analytical Capability
The STRATUS GC-1 Port harnesses impressive analytical capabilities, encompassing the monitoring of diverse analytes, ranging from light to heavy, all within a remarkably compact GC column. This portable model ensures swift analysis, completing the process in a concise timeframe of just 15 minutes. Its versatile functionality spans a wide spectrum of concentration levels, adeptly detecting substances from sub-ppb to concentrations spanning hundreds of ppm.
Ease of Automation
Similar to its EX counterpart, the STRATUS GC-1 Port follows the same fundamental principles as high-grade gas chromatographs deployed in laboratories for sample analysis. However, it introduces an innovative twist by embracing a continuous operational cycle. This unique attribute facilitates uninterrupted around-the-clock monitoring, allowing for a fully automated monitoring experience.
Resilient VOC Detection
The STRATUS GC-1 Port demonstrates robust proficiency in identifying a diverse range of volatile organic compounds (VOCs). Its capabilities span an array of compounds, including aromatic hydrocarbons, aliphatics, aldehydes, ketones, ethers, acids, and alcohols, each incorporating various functional groups such as halogens, oxygen, sulfur, nitrogen, or phosphorus. Notably, this versatile detection excludes carbonoxides and carbonates, making it a comprehensive and effective tool for VOC analysis.
